Power through 220–260 MHz with a 50W mobile transceiver designed for your reliable, on-the-road communications.
- 50W max RF output on 220–260 MHz; configurable to 25W or 5W; stores up to 200 channels for you to switch quickly.
- Compact chassis (145 x 190 x 47 mm) with a 1,200 g weight (with bracket) for your dashboard installation.
- Operates from a 13.8V DC power source; battery not included; operating temperature range -20°C to +60°C; IP55 rated for rugged use.

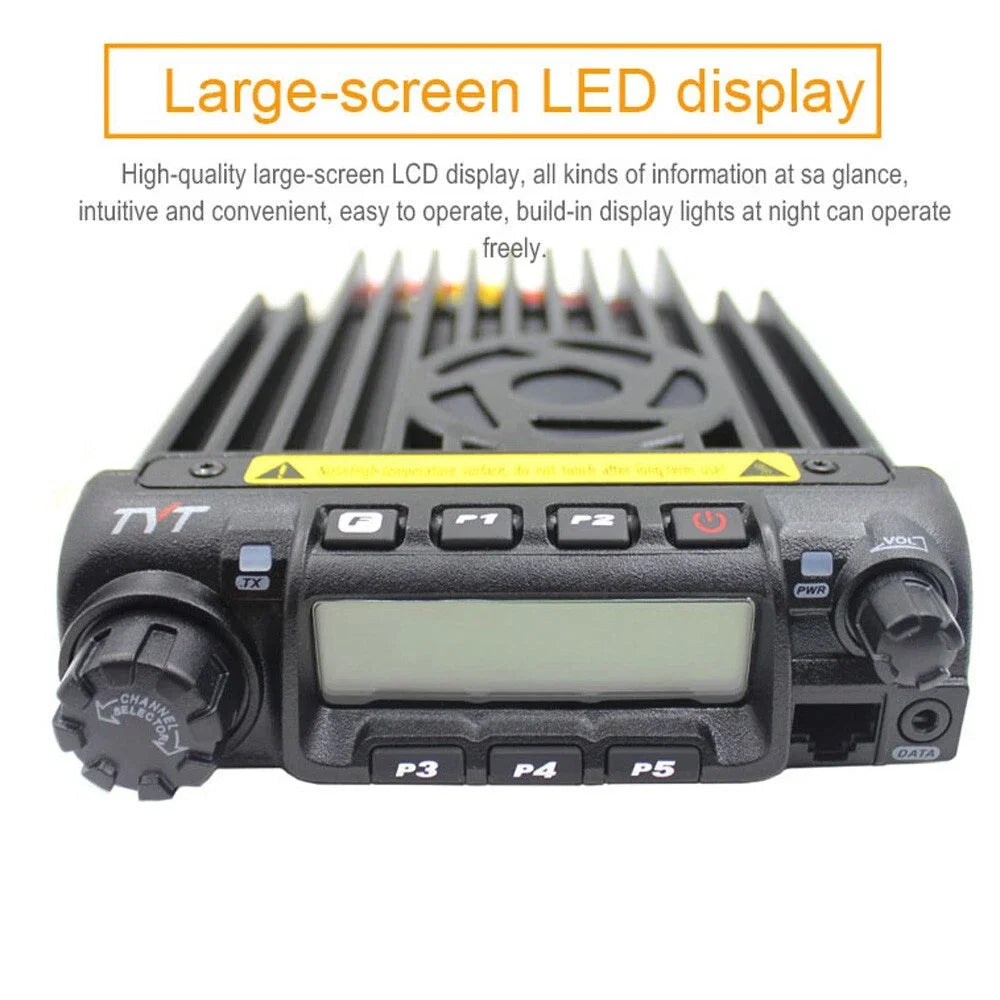

- Built-in display shows status and settings; channel spacing options (5/6.25/8.33/10/12.5/15/20/25/30/50 kHz) and FM modulation keep you in control.
Item Number |
TH-9000D |
General |
Frequenvy Range |
(220-260MHz) |
Channel Capacity |
200 |
Channel Spacing |
5/6.25/8.33/10/12.5/15/20/25/30/50KHz |
Freruency Stability |
2.5ppm |
Operating Temperature |
-20C ~ + 60C |
Operating Voltage |
13.8V DC 15% |
Dimension(HxWxD) |
145mm x190mm x47mm |
Weight(with bracket) |
1200g |
Receiver |
Reference Sensitivity |
0.25V / 0.35V |
Operating Bandwidth |
60dB#12.5KHz /70dB#25KHz |
Adjacent Channel Selectivity |
60dB#12.5KHz 70dB#25KHz |
Inter-modulation Rejection |
60dB/ 65dB |
Spurious Response Rejection |
70dB |
Rated Audio Response |
+1-+3dB |
Rated Audio Distortion |
<5% |
FM Hum&Noise |
40dB#25KHz /45KHz #12.5KHz |
Transmitter |
RF Power |
50W/25W/5W |
Frequency Modulation |
11kF3E / 16kF3E |
Modulation Distortion |
<5% |
FM Noise |
36dB#25KHz /40KHz #12.5KHz |
Adjacent Channel Power |
60dB#12.5KHz /70KHz #25KHz |
Audio Response |
+1-+3dB |
Audio Distortion |
<5% |
